This is a collection of tutorials that show how to get started with MCS-51 development using free tools and various evaluation boards. The tutorials include an LED Timer, which shows a binary counter that increments exactly once per second using the board LEDs and the MCS-51 timers, RS232 output using the UART (or a software UART where no hardware UART is available), and standard benchmarks for embedded systems (both Whetstone and Dhrystone; Coremark is not included due to its license, but can easily be ported using the Whetstone and Dhrystone tutorials as examples).
The author used a Debian GNU/Linux system, but the tutorials should work for other Linux distributions, *BSD or other Unices.
All tutorials use:
- The C compiler SDCC, version 3.5.0 or later to compile C programs for the MCS-51.
C8051 Boards

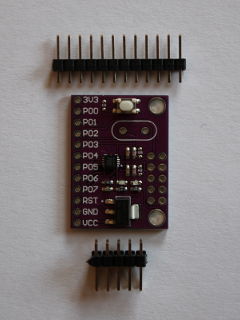

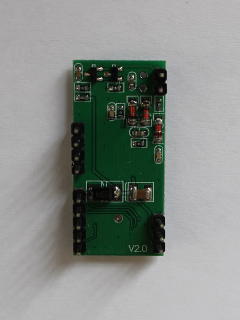

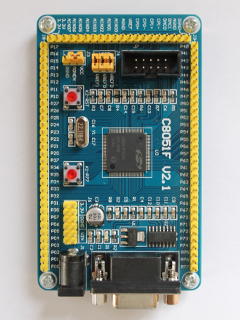

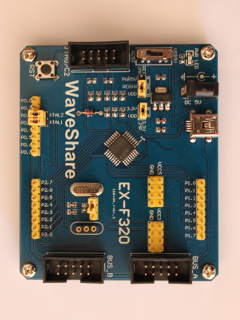

These are boards for the 8051-derived SiLabs C8051.
EFM8 Bee Starter Kits
These are boards for the 8051-derived SiLabs EFM8 Bee.

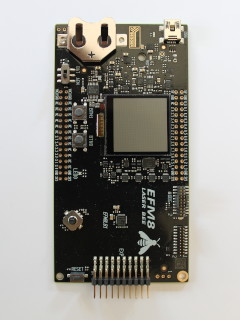

| SLSTK2001A Universal B.³ | SLSTK2022A Busy B.³ | SLSTK2030A Laser B.³ | SLSTK2011A Sleepy B.³ |
|---|
 |  |  |  |
| Controller |
|---|
| EFM8UB20F64G | EFM8BB31F64G | EFM8LB12F64E | EFM8SB20F64G |
| Tutorials |
|---|
| LED: TODO | LED: TODO | LED: TODO | LED: TODO |
| Serial: TODO | Serial: TODO | Serial: TODO | Serial: TODO |
| Bench: TODO | Bench: TODO | Bench: TODO | Bench: TODO |
Minimal STC Boards
These are boards for 8051-derived µCs made by STCmicro that have the µC, but little else.

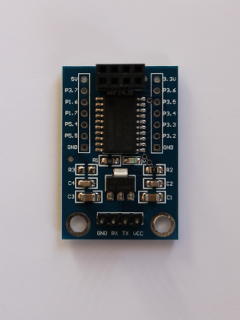

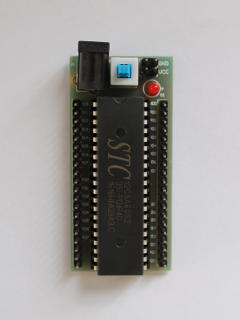

| 51 MCU SCM¹ | STC15L204 + NRF905¹ | CH340G STC15F104W¹ |
|---|
 |  |  |
| Controller |
|---|
| STC12C5A60S2 | STC15L204EA | STC15F104W |
| Tutorials |
|---|
| No LED | No LED | LED: TODO |
| Serial | Serial: TODO | Serial: TODO |
| Bench: Not enough RAM | Bench: Not enough RAM | Bench: Not enough RAM |
STC Boards
These are boards for 8051-derived µCs made by STCmicro.

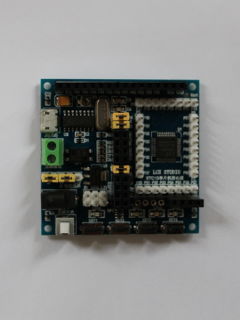

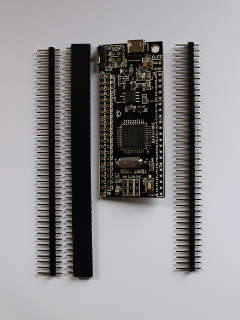

| STC89 DEMO BOARD² | STC15W4K56S4 SCM¹ | STC15W4K56S4 4 Ser.¹ | STC8A8K64S4A12 Dev.³ |
|---|
 |  |  |  |
| Controller |
|---|
| STC89C52RC | IAP15W4K58S4 | STC15W4K56S4 | STC8A8K64S4A12 |
| Tutorials |
|---|
| LED Timer | LED Timer | LED: TODO | LED Timer |
| Serial | Serial: TODO | Serial: TODO | Serial: TODO |
| Bench: Not enough RAM | Bench: Not enough RAM | Bench: Not enough RAM | Bench: TODO |
Various Boards
These are boards for various 8051-derived µCs.

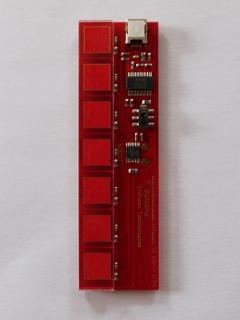

| EZ-USB FX2LP¹ | 7 Buttons Application Kit¹ |
|---|
 |  |
| Controller |
|---|
| CY7C68013A | XC822T |
| Tutorials |
|---|
| LED Timer | LED: TODO |
| Serial | Serial: TODO |
| Dhrystone | Bench: Not enough RAM |
Footnotes
| ¹ | Bought using my own money. |
| ² | Donated by an SDCC user. |
| ³ | Bought using Albert-Ludwigs-Universität Freiburg funding, used in Compiler research. |
If you would like to see an additional board featured here and are willing to provide the board, please contact me.
