Getting started with STM8 development using free software: LED and timer on the HCDVBD0017

This short tutorial is about a simple LED and timer demo for the Hobby components HCDVBD0017 board. While the boards themselves are very cheap, an stlink is not included. I used a cheap ST-Link/V2 device. The author used a Debian GNU/Linux system, but the tutorial should work for other Linux distributions, *BSD or other Unices.

The tools we use are

Hardware setup

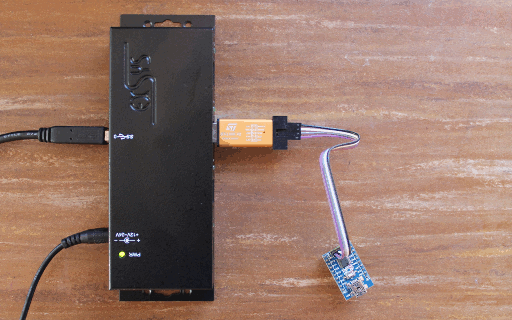

HCDVBD0017 with Demo running

To write our program to the board, we attach a an ST-Link/V2. The board does have an USB connector, which can be used to power it, but it should only be used when there is no ST-Link attached.

Get SDCC

Depending on your operating system there might be an easy way to install SDCC 3.5.0 or newer using a package system or similar (e.g. apt-get install sdcc on Debian). While SDCC 3.4.0 should be sufficient for this tutorial, you might want to try a newer version in case you encounter any bugs. In particular, SDCC 3.4.0 has an issue with the library search path; this can be worked around by explicitly specifying the path to the standard library when linking.

SDCC binaries or a source tarball can be downloaded from its website.

Get stm8flash

The stm8flash source can be found at its GitHub location, where there is also a download link for a zip archive of the sources. To compile it, a C compiler, such as gcc, pkg-config and libusb need to be installed. Unzip the archive (e.g. using unzip stm8flash-master.zip) change into the directory stm8flash-master and type make. In case there are any errors, such as header files not found, check that pkg-config and development files for libusb are installed.

The Demo

We present a simple Demo that blinks one LED, one once per second. This demonstrates setting up and using an accurate timer and doing basic I/O. Here is the C code:

// Source code under CC0 1.0
#include <stdint.h>

#define CLK_DIVR	(*(volatile uint8_t *)0x50c6)
#define CLK_PCKENR1	(*(volatile uint8_t *)0x50c7)

#define TIM1_CR1	(*(volatile uint8_t *)0x5250)
#define TIM1_CNTRH	(*(volatile uint8_t *)0x525e)
#define TIM1_CNTRL	(*(volatile uint8_t *)0x525f)
#define TIM1_PSCRH	(*(volatile uint8_t *)0x5260)
#define TIM1_PSCRL	(*(volatile uint8_t *)0x5261)

#define PB_ODR	(*(volatile uint8_t *)0x5005)
#define PB_DDR	(*(volatile uint8_t *)0x5007)
#define PB_CR1	(*(volatile uint8_t *)0x5008)


unsigned int clock(void)
{
	unsigned char h = TIM1_CNTRH;
	unsigned char l = TIM1_CNTRL;
	return((unsigned int)(h) << 8 | l);
}

void main(void)
{
	CLK_DIVR = 0x00; // Set the frequency to 16 MHz

	// Configure timer
	// 1000 ticks per second
	TIM1_PSCRH = 0x3e;
	TIM1_PSCRL = 0x80;
	// Enable timer
	TIM1_CR1 = 0x01;

	PB_DDR = 0x20;
	PB_CR1 = 0x20;

	for(;;)
		PB_ODR = (clock() % 1000 < 500) << 5;
}

sdcc is a freestanding, not a hosted implemenatation of C, and allows main to return void. We set up the timer to increment once per millisecond, which allows us to implement a basic clock() function. This function is used to control the blinking of the LEDs.

The demo can be compiled simply by invocing SDCC using sdcc -mstm8 --std-c99 led.c assuming the C code is in serial.c. The option -mstm8 selects the target port (stm8). An .ihx file with a name corresponding to the source file will be generated.

Put the demo onto the board

Assuming stm8flash and led.ihx are in the same directory, the board is attached through the integrated stlink device, ./stm8flash -c stlink -p stm8s103f3 -w led.ihx will write the demo onto the board. It will run and blink the green LED once per second, and the blue LED once every two seconds.


More about stm8flash

stm8flash was written by Valentin Dudouyt. It works both with stlink (including the one integrated on the discovery boards) and stlinkv2 devices. The programmer can be selected using -c stlink or -c stlinkv2. The target device is selected using the -p option (to get a list of target devices, use the -p option with an option argument that is not an stm8 device, e.g. -p help. stm8flash will treat filenames ending in .ihx or .hex as Intel hex, and other filenames as binaries.

More about SDCC

SDCC was initially written by Sandeep Dutta for the MCS-51, and has a relatively conservative architecture (see Sandeep Dutta, "Anatomy of a Compiler", 2000). It has been extended by various contributors and more recently, incorporated some cutting-edge technologies, in particular in register allocation (see Philipp Klaus Krause, "Optimal Register Allocation in Polynomial Time", 2013). The stm8 backend was mostly written by Philipp Klaus Krause for his research into bytewise register allocation and spilling (see Philipp Klaus Krause, "Bytewise Register Allocation", 2015).

SDCC is a C compiler that aims to be compliant with the C standards.

Important compiler options for STM8 developers include:
